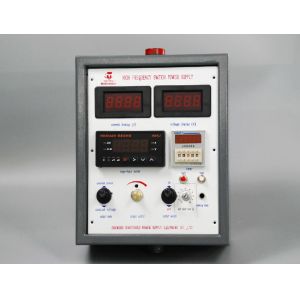

Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase

Ask Lasest Price
Brand Name :	xingtongli
Model Number :	GKD24-500CVC
Certification :	ISO CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200 units /month
Delivery Time :	5~8 work days

Add to Cart

Product Details
Company Profile

Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase

230v ac 24v dc electroplating rectifier with ampere hour meter

230v ac 24v dc electroplating rectifier with ampere hour meter is a new type electro plating machine plating rectifier – high frequency switching power supplies. It combines advantages of silicon rectifier waveform smoothness and silicon controlled rectifiers voltage easy adjustment, while has highest current efficiency (up to 90%), the most smallest volume, and needless to say, it is the most promising plating rectifier. Manufacturing technology has solved the power problem, thousands of amperes power switching plating rectifiers have entered a practical stage of application.

GENRAL SEPCIFICATION 24v dc electroplating rectifier with ampere hour meter

AC Input	voltage	220V
	frequency	50/60hz
	phase	3 phase
output	current	0~500a adjustable
	voltage	0~24v adjustable
	frequency	40khz
	effiencicy	≥89%
	voltage stability	≤1%
	current stability	≤1%
	Stabilization mode	Current stabilization/Voltage stabilization (Switchable easily)
	adjustment range	Voltage/Current from 0-100% continuously adjustable within rated range
control part	cooling system	air cooling /water cooling/mixed water & air cooling
	control method	local panel control/remote control box/ PLC
	Display contents	Voltage meter/Current meter/Working/Over temp/Error, etc..
	Protection method	Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment	Operating temperature	-20-50℃
	Ambient temperature	30-65℃
	Ambient humidity	≤90%
	Working loading	Full capacity operation, more than 1,000 meters above sea level, reduced load operation

feature:230v ac 24v dc electroplating rectifier with ampere hour meter

Cabinet:

230v ac 24v dc electroplating rectifier cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

igbt anodizing rectifier amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times

Board :

plating rectifier all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

230v ac 24v dc electroplating rectifier IGBT capacity expanded 3 times,make the power supply more reliable
