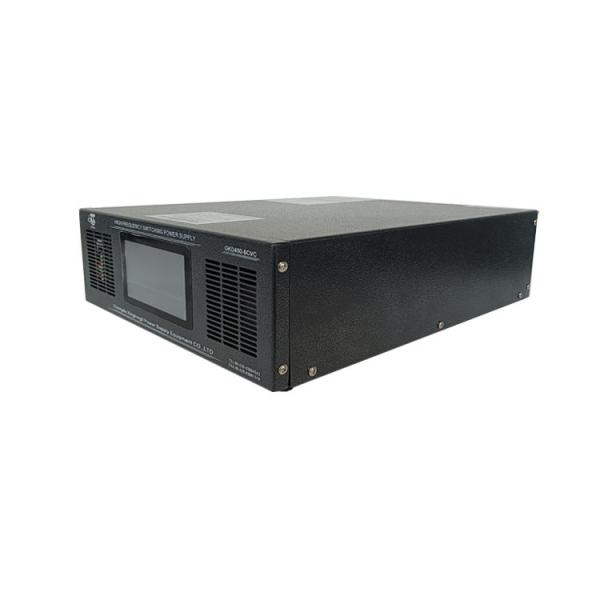

    High Precision Adjustable Variable Dc Power Supply Rectifier Power Source

    Ask Lasest Price
    Brand Name : XTL
    Model Number : GKD400-5CVC
    Certification : CE, ISO9001
    Price : 450-550$/unit
    Delivery Time : 5-30 working days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per Month
    • Product Details
    • Company Profile

    High Precision Adjustable Variable Dc Power Supply Rectifier Power Source

    Product Introduction

    Three phase electro plating rectifiers for sale adopted high quality imported IGBT as the main power devices,Nanocrystalline (also known as nanocrystals)-based soft magnetic alloy as the core of main transformer.The main control system uses multi-loop control technology, the structure Adopted the anti-fog acidification measures.

    Technical Data Sheet

    GENRAL SEPCIFICATION electroplating rectifier 400v 5a

    AC Inputvoltage380v 3 phase
    frequency50/60hz
    phase

    single phase : power <5kw

    three phase : power ≥5kw

    outputcurrent0~5a optional
    voltage6V/12V/15V/18V/24V/36V/50V optional or according to customers’ request
    frequency40khz
    effiencicy≥89%
    voltage stability≤1%
    current stability≤1%
    Stabilization modeCurrent stabilization/Voltage stabilization (Switchable easily)
    adjustment rangeVoltage/Current from 0-100% continuously adjustable within rated range
    control partcooling systemair cooling /water cooling/mixed water & air cooling
    control methodlocal panel control/remote control box/ PLC
    Display contentsVoltage meter/Current meter/Working/Over temp/Error, etc..
    Protection methodInput over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
    use environmentOperating temperature-20-50℃
    Ambient temperature30-65℃
    Ambient humidity≤90%
    Working loadingFull capacity operation, more than 1,000 meters above sea level, reduced load operation

    OPTIONAL FEATURE high frequency electroplating rectifier 400v 5a


    Reduced RippleRipple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
    Polarity Reversingmanual reverse or automatic reverse
    Digital Ampere-Hour / Minute Meterachieve the current hour,current minute control,achieve the chemical solution automatically add
    Computer analog Interface0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost
    PLC +HMI controlRS 485,Profibus,Profinet international standard interface
    multi-period TimerTimers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle

    Cabinet:

    electroplating rectifier 400v 5a Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

    Structure:

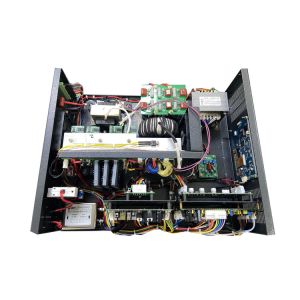

    Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

    Radiator:

    high frequency electroplating rectifier 400v 5a radiator capacity expanded 1.5 times,make sure better cooling effect

    switch control way:

    electroplating rectifier 400v 5a adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

    Main transformer:

    high frequency electroplating rectifier 400v 5a adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

    Core & Schottky diode:

    core capacity expanded 1.5 times

    schottky diode expands 4 times


    Board :

    high frequency electroplating rectifier 400v 5a all control boards did anticorrosion treatment with imported three defense lacquer

    IGBT:

    electroplating rectifier 400v 5a IGBT capacity expanded 3 times,make the power supply more reliable

    FEATURE

    1. Input: 380V/415V/480V/220v±10% /110V Single

    2. Cooling Method: Forced air cooling

    3. Control System: Microcontroller + digital display Screen

    4. Ripple: ≤1%

    5. Local Control


    APPLICATION

    1. PCB and Semiconductors The technology shift from DC to pulse will have a massive impact on your productivity and profitability. New demands on PCB and Semiconductor manufacturing require precise technology.
    2. Hydrogen Production As DC power specialists, we work with you to define and implement the most efficient, reliable and economical electrical eco-system to optimise hydrogen generation, reduce the total cost of operation and the investment needed.
    3. Electrostatic Precipitators (ESPs) Industries that create air pollution in terms of particulate matter (PM), need to keep up with ever-increasing emission requirements. With our unique solutions, based on power supply upgrades, you can breathe new life into your electrostatic precipitator.
    4. General Metal Finishing Reducing your total cost of operation while meeting your output quality and uptime targets.
    5. Marine With a rectifier integrated into your ballast water management system, you are always in safe hands. The reliability and performance of our rectifiers are the product of our long maritime experience, commitment to quality, and relentless pursuit of innovation.
    6. Uninterruptible Power Systems When critical processes simply has to work and full availability is required, we have the solution for you. Our systems within uninterruptible power supply eliminates dangerous down time and secure critical functions.

    Certifications

    Our factory

    Packaging & Shipping

    Our factory has a strict standards for electroplating rectifier 400v 5a package we adopt plywood case package with free-fumigation package featuring water-proof, anti collision, good fixation, which will be strong and durable during transportation . We can also pack high frequency electroplating rectifier 400v 5a according to clients' special requirements.


    Complete pre & after service for high frequency dc rectifier electroplating 12v 500a

    Pre-Sales Service

    * Inquiry and consulting support within 12 hours.

    * Sample testing support.

    * View our Factory.

    After-Sales Service

    * Training how to instal the machine, training how to use the electroplating rectifier 400v 5a


    * Engineers available to service machinery overseas.

    FAQ

    1. Q: Are u factory or tranding company?

    A: We are factory can offer more cheaper price but the same good quality.

    2. Q: Where are ur company?

    A: Our company is located in Chengdu City which is one of the fastest growing city in China.

    3. Q: If I want to visit your factory, how can I go to there?

    A: You just need to tell us when do come to our company, we will pick u up at the airport.

    4. Q: How can I do a payment?

    A: You can choose T/T, L/C, D/A, D/P and other payments .

    5. Q: How can I get my goods?

    A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

    6. Q: If problems of my rectifiers occured, what should I do?

    A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
